What are MC connectors

MC connectors are specially designed for low contact resistance and good stable connections under a wide range of conditions. MC means “multi-contact.” The term “multi-contact” comes from the fact that the connectors have a bunch of little spring loaded gold plated fingers that ensure good contact.

What is a MC for connector used for?

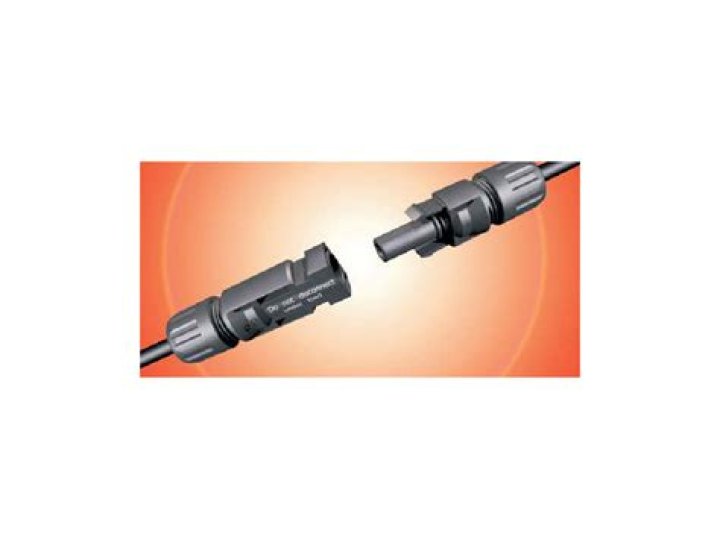

MC4 connectors are single-contact electrical connectors commonly used for connecting solar panels. The MC in MC4 stands for the manufacturer Multi-Contact (now Stäubli Electrical Connectors) and the 4 for the 4 mm diameter contact pin.

What are MC cables?

MC Cable Definition MC Cable, by most common definition, is a factory assembly of one or more insulated circuit conductors enclosed in an armor of interlocking metal tape or a smooth or corrugated metal sheath. The smaller cables should be unsheathed by using an armored cutter like the famous “Roto-Split”.

What is an MC in electrical?

Armored cable (Type AC) and metal clad cable (Type MC) provide a fast and efficient way of wiring both new construction and remodeling work. Their flexible metal armor provides mechanical protection of the electrical conductors while enabling them to bend around corners.

What are the 3 types of connectors?

Electrical connectors are classified into three types based on their termination ends: board-to-board connectors, cable/wire-to-cable/wire connectors, and cable/wire-to-board connectors.

Can MC cable be exposed in garage?

The interlocking metal tape armor Type MC cable is required to have a bare or insulated equipment grounding conductor in addition to any other conductors within the cable. … These cables can be installed either indoors or outdoors and in exposed and concealed locations.

Is MC cable better than Romex?

Electric shielding: Both MC cable and Romex are effective at protecting against magnetic fields, but MC cable can provide additional protection against electric fields due to its metallic casing. Non-metallic Romex cables cannot provide the same protection.

Can MC cable be surface mounted?

New for the 2017 NEC Code-cycle is section 330.15, entitled “Metal-Clad Cable: Type MC Exposed Work.” This new Code section requires an exposed run of MC Cable to closely follow the surface to which it is mounted while enjoying a new permission that allows the MC cable to be installed on the underside of floor joists.

Is MC cable a conduit?

COST-SAVINGS ALTERNATIVE Metal-clad (MC) armored cable constructions are a cost-effective alternative to traditional pipe and wire. These high-performing solutions offer significant cost savings by eliminating the need for electrical conduit and the labor required for installation.

What is the difference between BX and MC cable?

For those who are not familiar with the difference between the two, BX has a mechanical ground as part of the armored cable wall or jacket, where MC has an “extra” green wire that is used for grounding purposes. … Those are the only differences between the two cables.

Article first time published on

Is MC cable and armored cable?

MC cable is easier to remember because it’s an abbreviation for “metal clad” or “metallic-sheathed cable.” … Both are essentially just names for armored cable. When fiber is armored, it has a conductive jacket because the material is made from metal, usually aluminum or steel.

Can you use MC cable with plastic boxes?

MC Cable Is for Metal Boxes Only! Plastic or fiberglass electrical boxes aren’t designed to be used with MC cable. Even if you’re able to rig up a connection to a plastic box, you will fail the electrical inspection.

Can you use MC cable underground?

The Metal Clad Cable includes a grounding wire and can be used in outdoor applications. It can go into concealed and unconcealed spaces, and even buried underground. The National Electric Code (NEC), it is also approves it for difficult locations that involve exposure to moisture and hazardous elements.

What are the 4 types of connectors?

Connectors are used between two separate sentences. There are four types of conjunctions: coordinating, correlative, subordinating, and conjunctive adverbs (discussed elsewhere).

What are the 7 different types of cable connectors?

Unshielded Twisted Pair (UTP) …
Shielded Twisted Pair (STP) …
Multi-Mode Fiber (MMF) …
Single Mode Fiber (SMF) …
Registered Jack 45 (RJ45) …
Straight Tip (ST) …
Subscriber Connector (SC) …
Lucent Connector (LC)

What are spade connectors?

Spade terminals, also known as spade connectors, fork terminals or fork connectors, provide a quick and reliable solderless electrical connection. These single conductor connectors are made to connect with a predefined screw size or female quick connects.

When Should MC cable be used?

Type MC cables are widely used in 600 volt and MV power, lighting and fixture whip control applications. They are permitted for use on services, feeders and branch circuits for power, lighting, control and signaling circuits in accordance with Article 330 and 725 of the NEC.

Can MC cable get wet?

PVC coated, sunlight resistant, direct burial rated MC cable can be used in a wet location. … General use MC cables cannot be used in wet locations but there are some types of specialty MC cables that can. The most common is the PVC coated, sunlight resistant, direct burial listed MC cable in the image.

Can you pull Romex through PVC conduit?

7 Answers. Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Can Romex be exposed in detached garage?

No, you cannot expose Romex wires or non-metallic sheath wires in the detached garage or anywhere. Because it’s not safe to expose it on the outside. Besides, it goes against the National Electrical Code or NEC.

Can MC cable be bundled?

There are roughly ten 12-2 MC cables installed in bundled configuration using nylon tie wraps. These cables are the homeruns for 20-ampere branch circuits. Appreciate your insight.

Can I run MC cable through drywall?

Armored cable is fine in drywall – indeed, it’s superior to NM cable, and required in many/most commercial occupancies if not using conduit.

How long can you run MC cable?

of every outlet box, junction box, cabinet, or fitting and at intervals not exceeding 6 ft. Type MC cable must be supported at intervals not exceeding 6 ft. Cables installed horizontally through wooden or metal framing members are considered secured and supported where such support doesn’t exceed 6 ft intervals.

Where is MC cable not allowed?

330 of the NEC mentions that MC cable can be used indoor and outdoor but does not make mention of it being allowed or disallowed for use in damp environments. It does state that when used in wet locations there must be a corrosion-resistant jacket to protect the conductors.

Are anti shorts required for MC cable?

Anti-short bushings are not required for Type MC cable in accordance with the listing for the product. … NEMA supports the uniform adoption and enforcement of the NEC and recommends that local Authorities Having Jurisdiction follow the requirements of NEC Section 330.40, Boxes and Fittings for MC Cable.

Can MC cable be used for home runs?

Yes. Section 310.15(B)(3)(a) requires derating if the cable has more than 3 current carrying conductors. For example, a “home run” cable has 8, 12 AWG copper current carrying conductors with Type THHN insulation. … 12 AWG = 30 amperes x 70 percent from Table 310.15(B)(3)(a) = 21 amperes.

How often do you strap Romex?

General Cable Support Runs of NM cable must be supported at least every 54 inches. 1 They also must be secured within 12 inches of an electrical box that includes a cable clamp or within eight inches of a box or enclosure without a cable clamp.

Can you zip tie MC cable?

Yes, cable ties are permitted. Section 330.30(A) provides the general requirements and permits cable ties. … Type 2S or Type 21S cable ties are now recognized as capable of providing “securement and support” for cable assemblies and flexible conduit.

Is BX cable legal?

BX is accepted by the National Electrical Code (NEC). Older BX cables without an internal bonding strip are not accepted by NEC.

What does BX wire stand for?

Armored cable (AC) first appears in the 1903 NEC. There were originally two initial versions of armored cable. One was called “AX” and the other “BX,” with the “X” standing for “experimental.” The “BX” version became the one that eventually was produced, and hence the name “BX” became the common name.

Where is MC cable required?

Type MC cable installed on the bottom of floor or ceiling joists must be secured at every joist and not be subject to physical damage [Sec.
