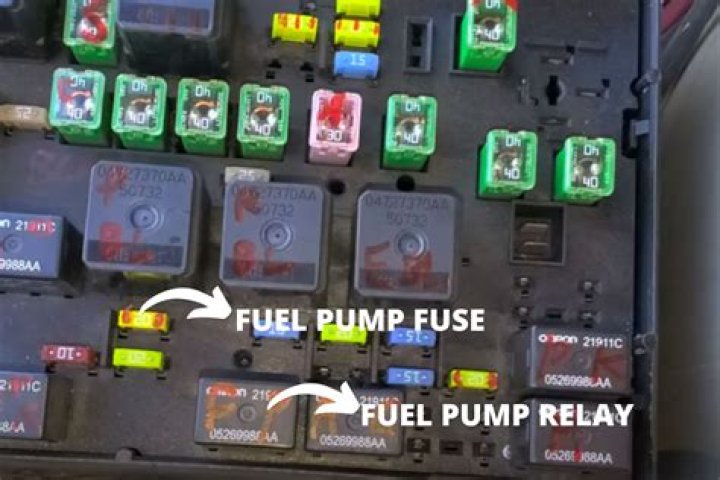

Which fuse is the fuel pump fuse?

Which fuse is the fuel pump fuse?

Most fuel pumps will run a 15 (Blue) 20 (Yellow) or 25 (Clear) amp fuse. Using a fuse that’s too small will cause the fuse to blow again. This is a normal condition as the fuse isn’t rated for the higher amps of a fuel pump circuit.

Is there a fuse to the fuel pump?

In most car models, the fuel pump relay is located in a fuse box somewhere under your dashboard, but it can also be located in the fuse box in the engine bay.

Where is the fuel pump relay located on a 1995 Ford F53 460?

This information covers my 1995 Ford F53 460 The biack power distribution box is located in front and above the radiator. The schematic is on the inside of the cover. The fuel pump relay is the 2nd relay up from the bottom. The center bottom fuse is a 20 amp maxi for the Fuel pump relay coil and for the electronic engine control system.

What is the wiring diagram for a bounder motorhome?

Bounder Motorhome Wiring Diagram – 1992 bounder motorhome wiring diagram, 1994 bounder motorhome wiring diagram, 1999 bounder motorhome wiring diagram, Every electrical structure is composed of various different pieces. Each part ought to be placed and connected with different parts in specific way.

What causes a fuel pump fuse to fail?

Major cause of relay/fuse failure is a voltage hungry load on the circuit, (i.e. bad pump motor)so it can be both. Also if your pump is newer than 92 or even a recent refresh, having a short life pump would also give you reason to check wiring/grounds as low voltage – lack of proper amperage will cause pump motor to run hot and self destruct.

What does black dot mean on Bounder wiring diagram?

Everything rides on circuit that is being assembled. According to previous, the lines at a Bounder Motorhome Wiring Diagram signifies wires. Occasionally, the wires will cross. However, it doesn’t imply connection between the wires. Injunction of 2 wires is generally indicated by black dot at the junction of 2 lines.
