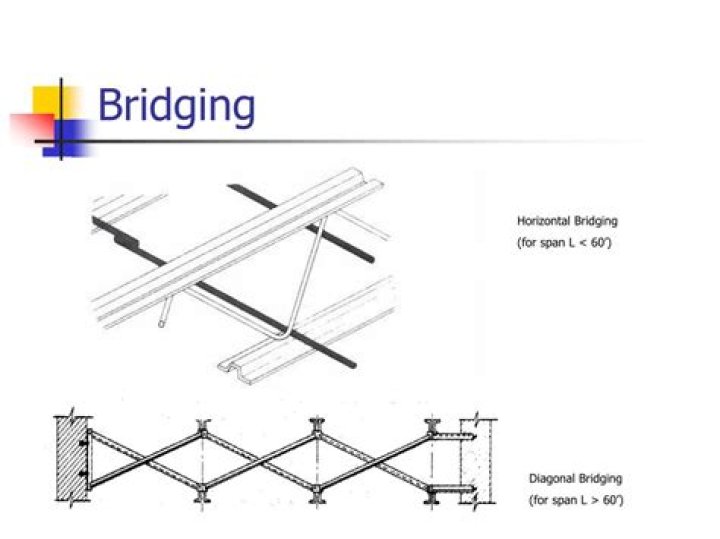

What is steel joist bridging

Bridging is intended to deal with the internal bracing forces which occur in the joist system and not used for forces external to the joist system. … Bridging provides lateral stability when the chords are not braced during the application of loads.

Is joist bridging necessary?

According to the IRC, joist blocking is only necessary if your joists have a depth greater than 12”. Therefore, for most houses, you are not required to have blocking or bridging if you have traditional lumber joists that are 2” in thickness and up to 12” in width as long as both ends are fastened properly.

What are the two types of bridging used between floor joists?

From a structural perspective, you are correct: Solid blocking and metal (or wood) X-type bridging do accomplish the same task. The blocking or bridging between joists (or rafters) also contributes to this phenomenon.

What does a bridging joist support?

The term ‘bridging’ refers to a brace, or an arrangement of braces, that is fixed between floor or roof joists to keep them in place, prevent joist rotation, and distributing loads over more than one joist. … Bridging can help strengthen a floor and stop it from bouncing when occupants walk across it.

Do floor joists need to line up with studs?

Although not a requirement, it is highly recommended that your floor joist and wall studs line up with each other. Most homes have uniform flooring, and it should not be a problem to have them lined up together since they follow the same spacing. Doing this makes it easier to work with these building components.

How do you stiffen a bridging floor?

Even if your joists already have a row of bridging at the center of the span, adding a row on each side of the existing bridging will stiffen the floor.

What is a bridging in construction terms?

a brace or an arrangement of braces fixed between floor or roof joists to keep them in place.

Do floor joists need cross bracing?

For a new home, you’ll want to install cross braces during the construction of the floor frame, to avoid the aforementioned floor problem in futures. Basically, cross-bracing your floor joists makes your wood frame floor system stiffer, consequently preventing twisting, deflection, squeaking, sagging, and bouncing.

What is a subflooring?

The subfloor is the bottom most structure of the floor. It provides a flat and stable surface and supports the actual floor. … Underlayments help to provide extra support to the actual floor. While there are different types of subfloors, the most common type is made from plywood.

What is cross bridging?

Definition of cross bridging : traverse rows of small diagonal braces or struts set in pairs and crossing each other between the timbers (as of a floor)

Article first time published on

Do I joists need blocking?

Engineered I-joists can span long distances to make a flat and solid subfloor. Tying the joists together with blocking makes the floor even stronger and stiffer. So one of the last things that need to be done before sheathing the deck is to fill in with joist blocking.

What is a trimmer joist?

1. Also called: trimmer joist. a beam in a floor or roof structure attached to truncated joists in order to leave an opening for a staircase, chimney, etc. 2. a machine for trimming timber.

What is the standard floor joist spacing?

Most often, floor joist spacing is 16 inches apart on center, but this can vary depending on building codes and the requirements of the structure in the blueprint. Floor joists help distribute the load of a structure.

Do noggins strengthen joists?

Noggins help to straighten out wall studs and floor joists and they are also used to provide a strong fixing for something that will be later fixed to the structure.

Which direction should floor joists run?

An important thing to know about joists is that they usually run in the same direction throughout a house. If the visible joists in a basement or attic run east to west, for example, you can be fairly certain the invisible joists under the bedroom floor also run east to west.

Why is it important for all crowns in floor joists to be turned up?

Crowning joists and installing the crowns pointing up is most important. If all of the joists in a floor are installed crown up, the weight of the furniture and people in the room tend to flatten out the joists. If the joists are installed with crowns facing down, it will make the floor sag.

What is blocking in framing?

Blocking is lumber installed within framing meant to be a nailer for something else later in the build. … Install Ladder Blocking everywhere an interior wall intersects an exterior wall. Best Practice: Install ladder blocking before standing interior walls to help tie them securely to exteriors.

How do you bridge floor joists?

Nail bridging on all joists Start by making sure the original bridging is tightly fastened; add nails or screws if necessary. Then measure the span of the joists (the distance between walls or beams that support the joists). Divide the span by three and add rows of bridging at both of the one-third points.

What are bridging?

Bridging courses are short, focused learning programmes designed to help high school students enter higher education institutions. They are seen as introductory level courses and can range from six months to one year. These courses are also created to prepare students for the pace and standard of tertiary education.

What is bridging design?

Bridging is a hybrid of traditional design-bid-build and design-build. The Owner hires a design consultant who will be in direct contractual privity with the Owner. The role of that consultant in bridging is to do more than just pre- pare performance criteria.

How can I make my floor joists stronger?

As incremental parts of a building’s structure, joists are not easily replaced. You can, however, strengthen the joists by securing another length of wood to the existing joist, called “sistering,” or reduce wobbly floors with block inserts between the joists, called “blocking.”

Why does my floor shake when I walk?

Wood framed floors are the most typical culprit of floor vibrations due to small deflections up and down as the joists are loaded and unloaded. … Thus walking across a floor with a loose subfloor or running an appliance like the dishwasher can cause vibrations.

How do you reinforce a joist?

The best way to strengthen floor joists from underneath is to make a supporting mid-span beam or wall beneath the wobbling joists. Using jack posts or 6×6 posts and 2×10 or 2×8 beams perpendicular to the joists will solve any wobble and ensure your joists never move again.

What goes on top of floor joists?

Underlayment: Some types of flooring can be installed directly on top of the subfloor, such as vinyl flooring. Other types need a middle layer, called underlayment, such as laminate,carpet and tile.

What is the best subfloor material?

Plywood is considered the most popular material used for subflooring, it has been used since the 1950s and remains one of the top choices for contractors. Standard plywood works perfectly fine as a subflooring material, but the best option is ¾” tongue-and-groove plywood subflooring.

Do you need subfloor over concrete?

If you don’t plan to use the space, there is no need for a subfloor or floor covering. Concrete or tile-over-concrete are acceptable floors for uninhabited basements. But to install any kind of floor covering—engineered wood, laminate, carpeting—basement subflooring is highly required.

What does joist blocking do?

Blocking or bridging can be used for a variety of purposes in deck building. Probably, the most commonly used technique is to install small pieces of material in a zig-zag pattern between the perimeter joists to create a rigid rim joist that prevents bounce and increases the strength of the rail attachment.

What is the purpose of cross bracing?

In construction, cross bracing is a system utilized to reinforce building structures in which diagonal supports intersect. Cross bracing is usually seen with two diagonal supports placed in an X-shaped manner.

What forms a cross bridge?

Cross-bridges can only form where thick and thin filaments overlap, allowing myosin to bind to actin. If more cross-bridges are formed, more myosin will pull on actin and more tension will be produced. Maximal tension occurs when thick and thin filaments overlap to the greatest degree within a sarcomere.

What are the 4 steps of muscle contraction?

• Excitation. The process which the nerve fiber stimulates the muscle fiber (leading to generation of action potentials in the muscle cell membrane)
• Excitation-contraction coupling. …
• Contraction. …
• Relaxation.

Do wood I-joists need bridging?

Bridging is sometimes required in floors or roofs when solid-sawn lumber joists are used. This addition provides lateral support to twisted joists to help maintain a vertical orientation. … Our code report (ICC ESR-1153) specifically states that bridging is not required for floor and roof TJI joist applications.
