What is belt and chain drives

The belt drive is a frictional type of mechanical drive where friction force between belt and pulley is used to transmit power and motion. Chain drive is one engagement type mechanical drive where power and motion are transmitted by successive engagement and disengagement of chain with a sprocket.

Which is better belt drive or chain drive?

Strength of the Chain vs Belt Drives It is evident that the two drives function the same way, but a chain drive is more durable than a belt drive. Unlike belt drives, chain drives can lift and move more massive doors, which is why many prefer it. … Chain drives can handle two-car and three-car garages without difficulty.

What is a belt drive used for?

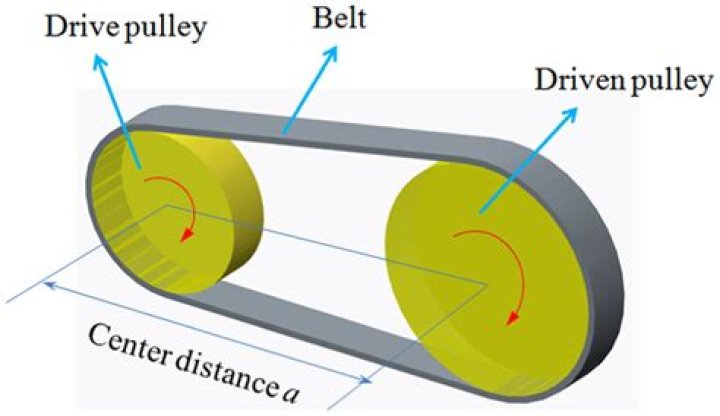

belt drive, in machinery, a pair of pulleys attached to usually parallel shafts and connected by an encircling flexible belt (band) that can serve to transmit and modify rotary motion from one shaft to the other.

What are the advantages of belt and chain drives?

No slip and creep during the power transmission, it ensure the perfect velocity ratio. …
High transmission efficiency than friction drive.
They can be operated under adverse thermal and atmospheric conditions.
It can operate under wet conditions.

What is the meaning of a chain drive?

Chain drive is a way of transmitting mechanical power from one place to another. It is often used to convey power to the wheels of a vehicle, particularly bicycles and motorcycles. It is also used in a wide variety of machines besides vehicles.

Where is chain drive used?

A chain drive is a one way of transferring mechanical power from one place to another place. Chain drive is widely use in vehicle like bicycles and motorcycles, to transfer power to the wheels. It is also used in a wide variety of machines.

What are the advantages of chain drives?

They can be used for both long and short distances.
A number of shafts and be driven from a single chain.
They are compact and have small overall dimensions.
They do not present fire hazard.
Temperature and environmental conditions do not affect their working.
They do not require initial tension.

What are the examples of belt drive?

The treadmill is another great example of a belt driven mechanism. The belt in this drive system is not to be confused with the tread on which the runner directly runs; rather the belt drive system is the toothed, synchronous belt that transfers the rotary motion from the central motor to the drive pulley.

What are the disadvantages of belt drive?

Limited Speed range.
They are not compact.
Considerable power loss.
Short service life compared to other mode power transmission.
The velocity ratio may vary due to belt slip.
They inflict a heavy load on shafts and bearings.

What is belt and types?

Belts are friction drives, which mean they depend on friction between the belt and pulley/sheave to transmit power. The most common types of belt drives include: Round belts. Round belts are are generally made of rubber.

Article first time published on

What are the uses of chain?

Decoration.
Power transfer.
Security and restraint.
Traction, pulling and lifting.
Weapons.
Other uses.

What is chain drive how its classification?

In the field of Mechanical Engineering chains drive can be classified into three broad categories and those are: Hoisting Chains. Conveyor Chains. Power transmission Chains.

Which is more efficient belt or chain?

Summary. This lab test has determined that chains are between 0.3% and 1.0% more efficient at low power outputs (under 212 watts), while belts are more efficient at high power outputs (over 212 watts).

What is open belt drive?

In an open belt drive, the belt proceeds from the top of one pulley to the top of another pulley without crossing. In cross belt drive, the belt proceeds from the top of one pulley to the bottom of another pulley and thus crosses itself. Here the entire belt remains in the same plane in every rotation.

Are belt drives good?

Belt drives last longer than chain drives– A properly maintained belt drive can last 3-5 times as long as a chain drive. Some riders have gotten 20,000 miles (around 30,000 km) out of a single belt. … This lube can make the belt last longer and run a bit smoother but is generally not required.

What does 4L belt mean?

4L Belt = The Outside Circumference (OC) – Minus 2 Inches. ( Example 4L320 = 30 Inch Inside Circumference) 5L Belt = The Outside Circumference (OC) – Minus 3 Inches. (

Do Belt drives have backlash?

Backlash: Backlash in a synchronous belt drive results from clearance between the belt teeth and the pulley grooves. This clearance is needed to allow the belt teeth to enter and exit the grooves smoothly with a minimum of interference. The amount of clearance necessary depends upon the belt tooth profile.

What are the 2 types of drive belts?

Serpentine Belt. A serpentine belt is located under the hood of a car, and it “snakes” its way between various pulleys and accessories. …
V-Belt. A V-belt runs off a crank and pulley and typically travels between one or two engine accessories. …
Timing Belt.

What is pulley drive?

A drive pulley is a pulley that is attached to a power source, that when in use puts force on a belt (or cable or chain). The belt is connected to the object being driven, which will then spin. This is a type of power transmission.

What is Bike drive chain?

A bicycle chain is a roller chain that transfers power from the pedals to the drive-wheel of a bicycle, thus propelling it. Most bicycle chains are made from plain carbon or alloy steel, but some are nickel-plated to prevent rust, or simply for aesthetics.

What are the types of chain?

Metric chains.
Steel band or Band chain.
Gunter’s chain or surveyor’s chain.
Engineer’s chain.
Revenue chain.

Who is the top of the chain?

The top of the chain is the person who can move out without finding a property to buy. As an example – Mr B owns property X. When he sells it he will move out and rent somewhere else. Mr A wants to buy property X but needs to sell Property Y first.

What is velocity ratio in belt drive?

The velocity ratio of the belt drive is the ratio between the velocities of the follower or driven (N2) and the driver (N1).

What is flat belt?

A flat belt is a belt with a flat surface, usually evenly textured on both sides, used in a pulley system. … When a flat belt is used as part of a transmission, sometimes the belt is twisted to create a Mobius Strip so it will wear evenly through use, lengthening the time between replacements.
