What is an instrument that records electrical impulses on ECG paper

An electrocardiograph machine tracks the electrical activity of a patient’s heart by tracing lines on paper that reflect the electrical impulses (beating) of the heart. Doctors use ECGs to gauge whether the electrical activity of your heart is normal or not.

What instrument is used to record the electrical impulses of the heart?

An electrocardiogram (ECG or EKG) records the electrical signal from your heart to check for different heart conditions. Electrodes are placed on your chest to record your heart’s electrical signals, which cause your heart to beat. The signals are shown as waves on an attached computer monitor or printer.

What part of the ECG machine records the tracing on the paper?

ABoutput displaythe part of the ECG machine that displays the tracing for the electrical activity of the heart, usually electronic or printed form of the 12 lead EKG

What is an instrument that measures and displays the electrical impulses?

An electrocardiogram uses electrodes attached to the skin, which are able to detect electrical currents, in order to provide us with information about the heart. The information detected by the electrodes is used to calculate measurements, known as leads.

What instrument is used to record the electrical activity of the brain?

An EEG records the electrical activity of your brain via electrodes affixed to your scalp. EEG results show changes in brain activity that may be useful in diagnosing brain conditions, especially epilepsy and other seizure disorders.

What are electrodes used for ECG?

Electrodes (small, plastic patches that stick to the skin) are placed at certain spots on the chest, arms, and legs. The electrodes are connected to an ECG machine by lead wires. The electrical activity of the heart is then measured, interpreted, and printed out. No electricity is sent into the body.

Which of the following instrument is used for recording the electrical activity of the muscles *?

Electromyograph is an instrument used for recording the electrical activity of the muscles to determine whether the muscle is contracting or not; or for displaying on the CRO. 5.

How do the ECG electrodes transmit heart electrical activity?

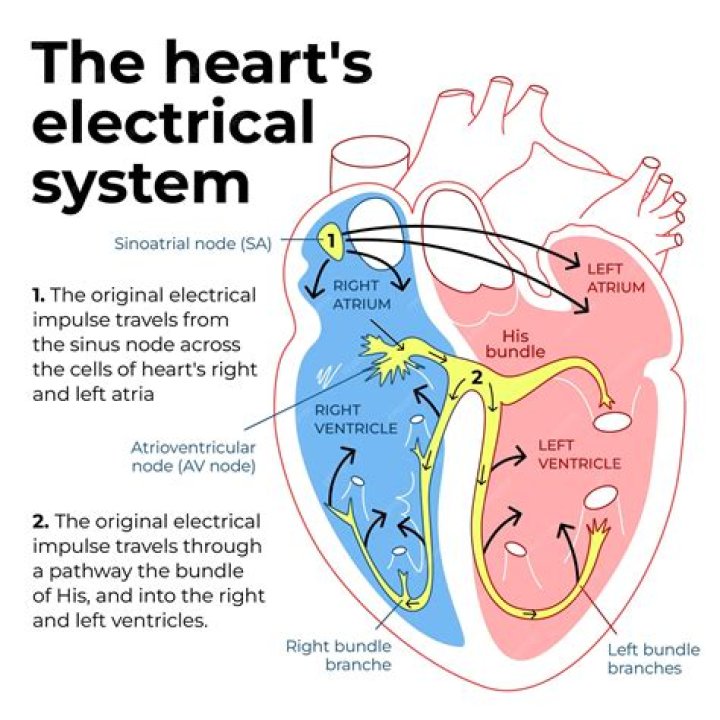

These signals are sent by a group of cells in the right atrium of the heart known as the sinoatrial node (SA node), and they spread through the heart muscle tissue as tiny electrical impulses. This causes first the atria and then the ventricles of the heart to contract.

What is not represented on an ECG tracing?

Normal Systole ECG: The U wave is not visible in all ECGs. The first wave on an ECG is the P wave, indicating atrial depolarization in which the atria contract (atrial systole ).

What are the components of ECG machine?

There are three main components to an ECG: the P wave, which represents the depolarization of the atria; the QRS complex, which represents the depolarization of the ventricles; and the T wave, which represents the repolarization of the ventricles.

Article first time published on

Which of the following is a record of the waves of electrical impulses responsible for the cardiac cycle?

An electrocardiogram (ECG or EKG) is a recording of the heart’s electrical activity as a graph over a period of time, as detected by electrodes attached to the outer surface of the skin and recorded by a device external to the body. The graph can show the heart’s rate and rhythm.

What type of activity is recorded on the ECG tracing quizlet?

The part of the ECG machine that displays the tracing for the electrical activity of the heart, usually in a printed form on a 12 leaed ECG machine.

How many electrodes are on an ECG?

Although it is called a 12-lead ECG, it uses only 10 electrodes. Certain electrodes are part of two pairs and thus provide two leads.

Is an echo and EKG the same thing?

Although they both monitor the heart, EKGs and echocardiograms are two different tests. An EKG looks for abnormalities in the heart’s electrical impulses using electrodes. An echocardiogram looks for irregularities in the heart’s structure using an ultrasound.

What is an EEG recorder?

An electroencephalogram (EEG) is a recording of brain activity. During the test, small sensors are attached to the scalp to pick up the electrical signals produced when brain cells send messages to each other. These signals are recorded by a machine and are looked at by a doctor later to see if they’re unusual.

Which of the following instruments receives and records electrical currents from the brain?

Clinically, EEG refers to the recording of the brain’s spontaneous electrical activity over a period of time, as recorded from multiple electrodes placed on the scalp. Diagnostic applications generally focus either on event-related potentials or on the spectral content of EEG.

Why is there electrical activity in the brain?

Electrical activity is used in the brain in order to fire electrical impulses to communicate with each other. Neurons use electrical signaling to receive and send information. When a neuron is stimulated, an action potential is fired, which enables the message signals to travel rapidly down the axon terminal.

Which of the following instrument is used for recording the electrical activity of the brain * A ECG B EMG C PCG D EEG?

Electroencephalograph is an instrument for recording the electrical activity of the brain, by suitably placing surface electrodes on the scalp. 2.

Which of the following instrument is used for recording the chest wall movements over the apex of heart?

1. Which of the following instrument is used for recording the chest-wall movements over the apex of heart? Explanation: An apexcardiograph records the chest-wall movements over the apex of the heart. These movements are in the form of vibrations having a frequency range of 0.1 to about 20 Hz.

Where are potentials picked up by patient electrodes?

Explanation: The potentials picked up by the patient electrodes are taken to the lead selector switch. In the lead selector, the electrodes are selected two by two according to the lead program.

What is electrode example?

An electrode is a solid electric conductor that carries electric current into non-metallic solids, or liquids, or gases, or plasmas, or vacuums. … Examples of typical materials used for electrodes in analytical chemistry are amorphous carbon, gold, and platinum.

What are the electrodes used for ECG EEG and EMG measurement?

Surface Ag/AgCl electrodes are the most common and favoured electrodes in clinical measurements for recording biological signals such as ECG, EMG and EEG [16]. One of the main advantages of using Ag/AgCl electrodes is the low noise level it generates during biological signals recording [16].

How do you make electrodes for ECG?

1. Prepare the skin. …
2. Find and mark the placements for the electrodes:
3. First, identify V1 and V2. …
4. Next, find and mark V3 – V6. …
5. Apply electrodes to the chest at V1 – V6. …
6. Connect wires from V1 to V6 to the recording device. …
7. Apply limb leads.

What are the different leads that are recorded on a 12 lead ECG?

A 12-lead ECG consists of three bipolar limb leads (I, II, and III), the unipolar limb leads (AVR, AVL, and AVF), and six unipolar chest leads, also called precordial or V leads, ( , , , , , and ).

Which of the following is a recording of the electrical activity of the heart?

Also known as an electrocardiogram or an EKG, an ECG is a test that detects and records the strength and timing of the electrical activity in your heart. This information is recorded on a graph that shows each phase of the electrical signal as it travels through your heart.

Why are electrodes placed in ECG?

It is important an ECG is recorded accurately. ECG electrode placement is standardised, allowing for the recording of an accurate trace – but also ensuring comparability between records taken at different times.

How does an ECG record voltage?

It is used to record the electrical impulses that stimulate the heart. The electrodes record a potential difference. The needle (or pen) of the ECG is deflected a given distance depending on the voltage measured. The ECG is a plot of voltage on the vertical axis against time on the horizontal axis.

What are the 5 waves of an ECG?

• P wave. The P wave is a small deflection wave that represents atrial depolarization.
• PR interval. …
• QRS wave complex. …
• ST segment. …
• T wave. …
• Wave direction and size. …
• Interpreting the ECG. …
• Rate.

What are the types of ECG machine?

Types of ECG a stress or exercise ECG – carried out while you’re using an exercise bike or treadmill. an ambulatory ECG (sometimes called a Holter monitor) – the electrodes are connected to a small portable machine worn at your waist so your heart can be monitored at home for 1 or more days.

What is a view of the heart's electrical impulses?

The electrocardiogram (ECG or EKG) is a diagnostic tool that is routinely used to assess the electrical and muscular functions of the heart. While it is a relatively simple test to perform, the interpretation of the ECG tracing requires significant amounts of training. Numerous textbooks are devoted to the subject.

What is ECG medical term?

A line graph that shows changes in the electrical activity of the heart over time. It is made by an instrument called an electrocardiograph.
