What are primary brakes

A portion of the primary brake piston is positioned between the brake disk and the secondary brake piston. Both pistons are operable in response to fluid pressure. A primary brake valve controls communication of fluid pressure to the primary brake piston.

Which brake shoe is the primary?

One wheel cylinder operates the brake on each wheel. Two pistons operate the shoes, one at each end of the wheel cylinder. The leading shoe (closest to the front of the vehicle) is known as the primary shoe. The trailing shoe is known as the secondary shoe.

What is secondary brake shoe?

But on the self-energizing systems that most vehicles use, the bottom pivot on the front shoe connects to a moveable rod or plate, which connects in turn to the bottom of the rear — secondary — shoe. … Thus, the rear shoe does most of the braking and the front shoe’s primary job is to engage the rear shoe.

What is secondary brake?

Secondary brake is the application of air to all chambers before the hand valve is fully applied. When the hand “brake” is fully applied air is dumped from the spring brakes. The secondary brake is in reality using the hand valve as a footbrake.

What are the two primary types of drum brakes?

There are three types of drum brakes depending on how the brake shoes are pressed on to the drums; leading/trailing shoe type, twin leading shoe type and duo-servo type.

What are the different types of brakes?

Disc Brakes. Disc brakes consist of a brake rotor which is attached directly to the wheel. …
Drum Brakes. Drum brakes consist of a brake drum attached to the inside of the wheel. …
Emergency Brakes. …
Anti-Lock Brakes.

What are primary brakes and secondary brakes?

A primary brake valve controls communication of fluid pressure to the primary brake piston. A secondary brake valve controls communication of fluid pressure to the secondary brake piston.

When making a short stop facing uphill you should?

Explanation: As with stopping in any other situation, if you have to make a stop on an uphill gradient, wait until the vehicle has come to a halt before applying the parking brake.

What's an endurance brake?

A system for controlling the vehicle’s speed without using the footbrake is called an endurance brake or retarder. It replaces some of the functions of friction-based brakes which are susceptible to brake fade on long downhill slopes. … These systems mean your brake linings last longer.

What type of brakes are used in trucks?

Air brakes are used in heavy trucks and buses because they’re more reliable than standard hydraulic brakes. As a trucker, being familiar with air brakes and how they work is crucial to ensuring everyone’s safety on the road.

Article first time published on

What does it mean when brakes shake?

Brake vibration, or what can also be referred to as a shaking or pulsation, often is the result of parts of the disc brake’s rotor being thinner than others instead of uniform all around. … If the vehicle’s pads “drag” on the rotors too long, the brake rotor and/or the pads can become damaged.

What are the two different types of brake shoes?

Types of Brake Shoes Leading/trailing, duo servo, and twin leading setups are all different drum brakes and all three feature different shoe types.

Are all brake shoes the same?

First of all, are brake pads and brake shoes the same? The short answer is no. While they both carry out a similar function, they operate in different types of braking systems and have different advantages (and disadvantages).

What are dual servo brakes?

Duo-servo drum brake systems have a pair of brake shoes linked by a hydraulic wheel cylinder near the top and linked by an adjuster at the bottom. … This self-energizing action pulls the shoe even more tightly against the drum, multiplying the braking force.

What is caliper brake?

A caliper is part of the disc brake system, the type most cars have in their front brakes. The brake caliper houses your car’s brake pads and pistons. Its job is to slow the car’s wheels by creating friction with the brake rotors. … Inside each caliper is a pair of metal plates known as brake pads.

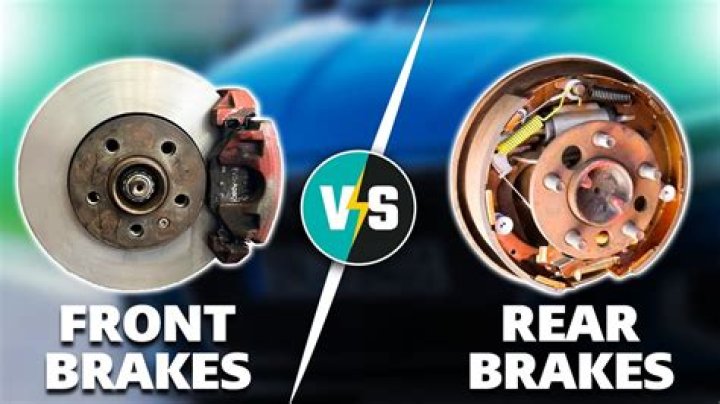

Are drum brakes better than disc?

Overall, when you consider disc vs. drum brakes, disc brakes deliver better performance in both wet and dry conditions. But drum brakes offer cost benefits, and for this reason, they continue to be widely used.

Is the parking brake your secondary brake system?

Your parking brake is either a handle or a button that engages a secondary braking system. This system operates independently from your transmission’s braking system. Originally, this secondary braking mechanism was intended to stop a vehicle when the main brake system failed.

Are there left and right brake shoes?

There are usually left-handed and right-handed clips, so change one at a time, making sure they match up exactly as you go. Often, a small packet of graphite-based grease will come with the brake pads. … This photo shows that the new brake pad has a riveted-on shim, which is the thin metal plate.

Are Leading shoes self energizing?

This increase in shoe tip force above the input expander force is termed as positive servo, and shoes that provide this self-energizing or servo action are known as leading shoes.

What are the 3 different types of brakes?

In most automobiles, there are three basic types of brakes including; service brakes, emergency brakes, and parking brakes. These brakes are all intended to keep everyone inside the vehicle and traveling on our roadways safe.

What are the three main types of brake pads?

There are three main types of brake pads that you’ll find on passenger vehicles: non-asbestos organic, ceramic and semi-metallic.

How many types of brake does a dumper have?

Note: The different types of brake include friction, mechanical, electrical, regenerative devices and hydrostatic or other fluid types. Hydraulic system where hydraulic motors form a direct drive to the wheels or track to propel the machine and slow machine movement. Note: 1.

What is a HGV secondary brake?

The three main braking systems on a HGV are the service brake (which performs the primary function of stopping the vehicle when you depress the footbrake), a secondary brake – used in the event of a failure of the service brake, and a parking brakes which are only used when the vehicle is stationary, including if you …

When should endurance brake be used?

Explanation: An endurance brake can help to control your speed on long downhill slopes without using the service brake. Reducing the use of the service brake helps to prevent the brakes from overheating and reduces the risk of brake fade.

What's an advantage of progressive braking?

Explanation: The way you drive matters. The safety and comfort of your passengers is your priority; if you have the correct attitude when you’re driving, your passengers will be assured of a comfortable and pleasant journey.

Should I leave my car in gear when parked on a hill?

The principal benefit of leaving your car in gear is that doing so prevents it from rolling away. This means that, while it isn’t necessarily a bad idea to keep your car in gear when you’re on flat ground, it’s most important to do so when you’re parked on a hill.

Should I park facing uphill or downhill?

Safely parking on a hill is all seating your wheels into the curb — the right way. When parking uphill at a curb, turn your front wheels away from the curb. When you’re parking downhill, turn your front wheels toward the curb.

When should you use exhaust brakes on a truck?

Drivers can rely only on exhaust brakes for stopping their car. Especially if the vehicle doesn’t have a very high speed, drivers can use only the exhaust brakes for slowing down and stopping their cars, reducing the wear and tear on the regular brakes.

Do all trucks have air brakes?

Air brakes are typically used on heavy trucks and buses. Typical operating pressure is approximately 100–120 psi or 690–830 kPa or 6.9–8.3 bar. … Most heavy vehicles have a gauge within the driver’s view, indicating the availability of air pressure for safe vehicle operation, often including warning tones or lights.

What are spring brakes?

Spring brakes are not air applied like service brakes. They apply when air pressure leaves the brake chamber and release when air pressure builds up in the chamber. Spring brakes use a different type of brake chamber from service brakes. … Spring brake chambers are different in appearance from service brake chambers.

What kind of brakes do most newer heavy duty trucks use?

Most newer heavy-duty vehicles use dual air brake systems for safety. A dual air brake system has two separate air brake systems which use a single set of brake controls.
