What are auxiliary switches in overhead console?

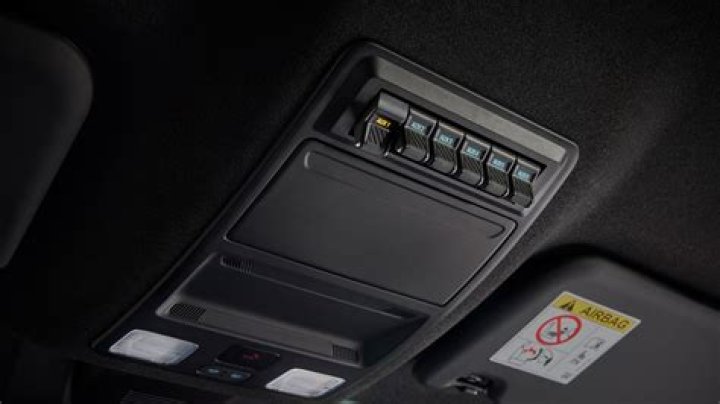

The six auxiliary switches are mounted in the overhead console, and the five factory-installed harness connections extend from the front to the rear of the vehicle. For the connecting of various lights, the 2021 Bronco has a connection in the A-pillar for an overhead light bar, pod lights, or spotlight.

What do auxiliary switches do?

Auxiliary switches provide remote electrical indication if the circuit breaker is open or closed. They are provided as two-switch combinations, with a maximum of two two-switch combinations for the NF frame and six two-switch combinations for the RF frame.

What are the AUX switches for in the Ford f350?

Auxiliary switches, or aux switches for short, are used to regulate electrical performance within vehicles. On the Ford F-250, the aux switches relay information to the ECM, and are specifically responsible for telling the ECU whether the circuit breaker is open or closed.

What are Ford Bronco auxiliary switches?

What Are The Auxiliary Switches Inside Your Ford Bronco SUV? The auxiliary switchboard on the overhead console makes aftermarket customization easier with six prewired switches connected to the power distribution box. The six switches: Can be customized to control additional functions.

What are auxiliary switches in cars?

Starting in 2019 vehicles equipped with Auxiliary (Aux) Switches will have 6 Aux Switches. These switches are integrated into the vehicle electrical architecture and communicate over a LIN bus to the vehicle. The low current outputs control relays in the Aux Power Distribution Center (PDC).

Do Ford Upfitter switches have relays?

The Upfitter Switches are operational when the ignition key is in the “RUN” position only. The power to the switches is relay controlled and was designed to operate in the “RUN” mode to reduce the possibility of draining the battery(ies).

What are Ford Upfitter switches used for?

Upfitter Switches The switches are directly connected to the fuse box and allow owners to seamlessly hook up their winches, lights, strobes, radios, or any other device they deem necessary.

What is an Upfitter?

1 : one that attaches hardware and trim to wooden furniture. — called also fitter. 2 : one that fits and assembles tops to casket bodies and puts in the hinges and other hardware. — called also fitter.

How is the manual changeover switch connected to the main board?

The left side of lower slots are connected to the main board as load. In case of power failure, the manual changeover switch can be changed to to the generator / inverter position. This way, power supply will continue to the load points through the inverter or generator.

How does a light switch wiring diagram work?

Light switch wiring diagram depicting the electrical power from the circuit breaker panel entering the wall switch electrical box and then going to two ceiling lights via a two conductor cable. The grounding conductor in the cable is not shown in order to simplify the diagram.

How to wire auto and manual changeover and transfer switch?

Step by Step Procedure with Calculation Fig 5 shows 4-Poles, 3-Phase automatic transfer switch (ATS) connection to the main distribution board. All the wiring connections are same as above for manual operation of three phase changeover switch but the switching operation is automatic.

How is a two pole changeover switch connected?

– Single & Three Phase In fig 2, different connection and wiring diagrams are shown for a two pole, single phase manual changeover switch. The upper portion of the changeover switch is directly connected to the main power supply while the lower first and right connections slots are connected to the backup power supply like generator or inverter.

Which is the correct wiring diagram for an OT switch?

*OT is a switch that opens when an overtemperature condition exists (Type MFO and MGO only) T1 T3 MOTOR 3 2 L2 T2 L3 T3 T2 L1 1 T1 13 14 43 44 53 54 31 32 21 22 Status (N.O. or N.C.) Location A1 15 B1 B2 16 18 B3 A2 B1 B3 15 Supply voltage 16 18 L M H 2 Levels B2 21 22 13 14 X1 X3 AC L1 L2 LOAD Orange X2 Green AC 1 5 9 2 6 10 4 8 12 13 (–) 14 (+)

Where are the auxiliary switches on a ram truck?

Ram 2500/3500 vehicles have 5 auxiliary switches. These switches are integrated into the vehicles electrical architecture (LIN signals) with their outputs found underhood in connectors located on the auxiliary PDC. Please note that these switches are hard wired to only switch power (12V) via their relays.

What kind of wiring do you need for a light switch?

This page contains wiring diagrams for household light switches and includes: a switch loop, single-pole switches, light dimmer, and a few choices for wiring a outlet switch combo device.

How do you wire a bar limit switch?

Connect one wire from the limit switch (red or black) to the part of the wire that you just cut that is coming from the push button. Then connect the other wire from the limit switch (red or black) to the other side of the wire that you just cut that is coming from the starter. Connect all wires using wire nuts.
