How to connect water valves to ice maker?

How to connect water valves to ice maker?

Valves Ice Maker Water Valves Connection Sweat (7) PEX Barb x Comp (5) PTC x Comp (5) F1807 Crimp x PEX x IPS/Sweat (3)

What happens if you break the ice maker valve?

The problem with a broken valve is that it can let too much water pass, causing the ice maker to overfill the trays, which leads to additional water drips and freezing inside the machine. Turning Off a Water Valve There is a water line connected to the fridge that has a shutoff valve you can use to turn off the water going into the refrigerator.

What makes the water turn off in an ice maker?

When you change the fridge from water to ice, the switch inside the electrical circuit energizes the solenoid-operated water valve. The solenoid water valve allows water to flow through the valve and into the ice cube trays freely.

How does an ice maker work in a refrigerator?

How an Icemaker Works When you change the fridge from water to ice, the switch inside the electrical circuit energizes the solenoid-operated water valve. The solenoid water valve allows water to flow through the valve and into the ice cube trays freely.

Where is the water valve on an ice maker?

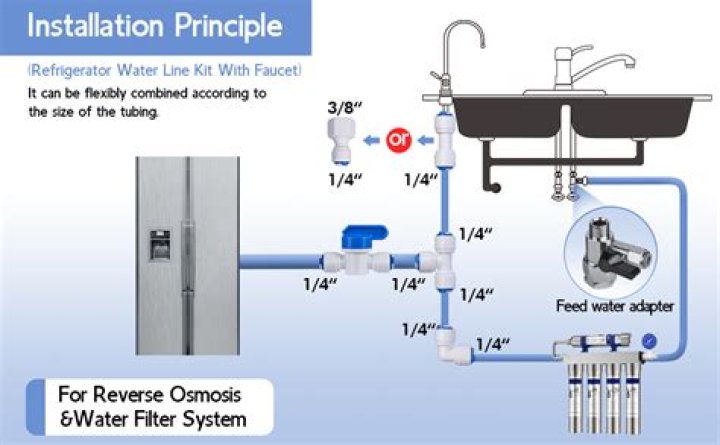

The water line attaches to the valve on the wall or beneath the sink and connects to the exterior back of the refrigerator. Turn off the valve by turning the small valve handle clockwise. Use an adjustable wrench to loosen the nut holding the water line to the refrigerator. Place the line in a bucket to catch any water left in the line.

What does a water inlet valve on ice maker does?

The water inlet valve controls the flow of water to the ice maker. If the valve doesn’t open when activated your ice maker may stop producing ice. A broken valve may also allow water to flow constantly even when the refrigerator is unplugged, which can cause icicles and water leaks inside your freezer.

How do you test ice maker water valve?

Test And Inspect. The icemaker ‘s valve is easy to inspect and test. First, gently pull the refrigerator away from the wall, and unplug it. Turn off the water supply to the icemaker by closing the shut-off valve in the copper waterline leading to the valve (Fig.

What is the best water line for ice maker?

Copper is the best for water lines to ice makers, use a regular valve teed off a water line then reduced to 1/4 ” do not use saddle valves they leak and come lose and sometimes do not shut off when you need them to.
