How far apart should balusters be spaced

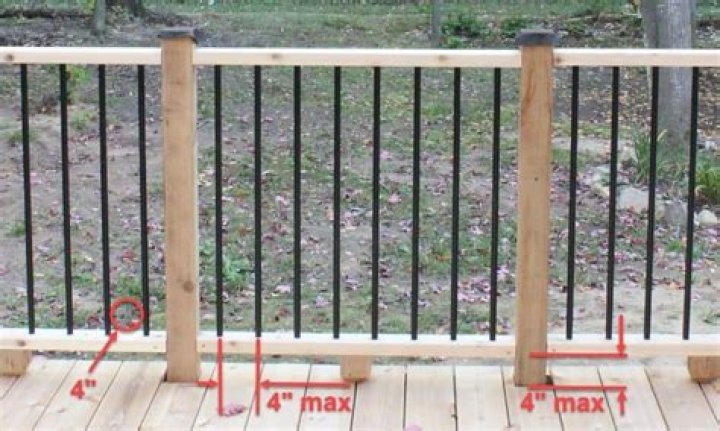

They must be installed close enough that the space between them is less than 4 inches. Most city inspectors carry a 4-inch ball with them to test the spacing. Installed balusters should withstand 50 pounds of pressure exerted over a 1-sq. -ft area.

How do you calculate spacing for balusters?

Measure the length of the space between the end supports of the balustrade. For this example, assume it’s 13 feet 5 ½ inches, or 161 ½ inches. Divide that length by four to determine the number of spaces you will need while having a minimum of 4 inches distance between balusters.

What is the proper spacing for deck balusters?

In order to comply with building regulations and codes, balusters must be spaced no more than 4 inches apart on center. The general rule is that your railing must have three balusters per foot (every 12 inches), although you can place them closer together if you’d like.

What's the maximum distance between balusters?

U.S. building codes mandate that balusters have no more than a 4-inch gap between them. This relatively tight amount of spacing still allows for visibility between spindles, but also stands as a safety measure to prevent small children from becoming stuck between spindles or from slipping through the balusters.

How do you make a baluster layout?

Hold two landing balusters the same distance apart as the balusters on the stair (3 1/2 inches, plus or minus) and move them towards and away from the newel post until the negative space between the newel and the baluster closest to it is the same as (or a little smaller than) the space between the stair balusters.

What is the maximum gap allowed between the balusters on a residential staircase?

Gap between spindles: The building regulations state that, a 100mm sphere should not be able to pass through any opening in the balustrade, as such, the maximum gap between the spindles should not be any greater than 99mm, as shown on the diagram to the right.

How tall should balusters be?

Guards, spindles, or balusters must be 34” to 38” when measured from the nose of a 10-inch deep tread. Interior stairwells require that anything over 2 steps or 3 risers would need a rail. Balusters, or other options of vertical guards that support a handrail, should be able to support 50lbs over a 1-square-foot area.

What is the difference between balusters and spindles?

A baluster and spindle is actually almost the same thing, but the word spindle is more commonly used because it is easier to remember and say. Balusters usually rest on a footing; this could be a step, floor or deck, whereas, spindles are supported by a horizontal rail at the bottom that is attached to the posts.

What is code height for railings?

IRCOSHAResidentialGeneralHandrail Height34″ to 38″30″ to 38″Guard Height36″ minimum42″ — plus or minus 3″

How far should spindles be apart UK?

In the UK, the regulations state that you cannot have a spacing of more than 100mm (horizontally) between spindles at their widest point, because a child could fall through or even get their head through and strangle themselves.

Article first time published on

How do you measure knee wall baluster spacing?

For balconies and knee walls, measure the opening between the bottom square block of the newel and either the opposing newel or wall. Add the thickness of the baluster to this measurement. Example: if the opening between two newel posts is 71″ and the balusters are 1-1/4″ square, then add 71″ + 1-1/4″ = 72-1/4″.

How do you calculate spacing between boards?

Divide distance “A” by the number of spaces between objects. In our example, this is 223.5″ / 3 = 74.5″. This is the center-to-center distance of the posts (or flower pots on your porch, holes in your board, or pickets on your fence). The spacing between the objects is that distance less the width of your objects.

What is code for stair railings?

On a stair, since handrail must be between 34″ and 38″, the handrail and the top of the guard can be one and the same. In commercial applications, the IBC requires a minimum height of 42″. On stairs, once there is a 30″ drop, a handrail will be required and placed between 34″ and 38″ above the nosing.

How high should stair spindles be?

Tip. A stair rail should be between 34 and 38 inches tall.

How do you fill the gap between stairs and walls?

The easiest and most used product to fill each gap would be a latex caulking. A cartridge (or tube) is placed in a caulking gun and applied in a continuous bead along the gap. Once the gap is covered press it into the gap with a putty knife. This will also flatten the caulking so that it conforms with the flat wall.

What is a space saver staircase?

A Space Saver Staircase is a Compact Staircase that has alternating treads allowing you to get up a flight of stairs in approximately half the going distance of a normal flight of stairs. Very popular for Loft conversions where space is of a premium.

Do stairs have to have banisters?

Handrails are mandatory. Stairs should have a handrail on at least one side if they are less than one metre wide, and on both sides if wider than this. Handrails should be placed between 900mm and 1000mm above the highest point on the staircase steps.

Are horizontal balusters code?

Removing the “ladder effect” from code restrictions means that beautiful Cable Railing, Pipe Railing with multiple horizontal lines, and Horizontal Railing from Superior Aluminum all are code-compliant, safe options that meet the ICC.

How far apart are railing posts?

U.S. building code requires support posts for the rail structure to be no further apart than 6 feet on a deck with 4×4′ deck rail posts and no more than 8 feet apart for decks with 6×6′ deck rail posts. Posts should be no further apart than 5.5 feet on stairs.

What is the purpose of balusters at home?

The Purpose of Balusters First, balusters support the handrail. Balusters also close the gaps between posts, acting as safety features by eliminating excess space through which someone could fall.

What is a banister called in America?

banister in American English 1. a baluster. 2. ( sometimes banisters) the balustrade of a staircase.

What is the difference between banisters and balusters?

As nouns the difference between banister and baluster is that banister is the handrail on the side of a staircase while baluster is (architecture) a short column used in a group to support a rail, as commonly found on the side of a stairway; a banister.

How far apart should spindles be on a deck railing UK?

Therefore, spindles need to be spaced at approximate 120mm centres. Allow 8 spindles every metre of handrail. For decks more than 600mm above ground level it is necessary to achieve a balustrade height of at least 1100mm.

How do you measure baluster spacing on stairs?

1. Measure the length of your balcony. Place your tape measure by the wall or newel on one side of the balcony. Measure all the way to the wall or newel on the other side. …
2. Multiply the total distance by 3. This will tell you how many balusters you need.
