How do you wire a red and white thermostat?

How do you wire a red and white thermostat?

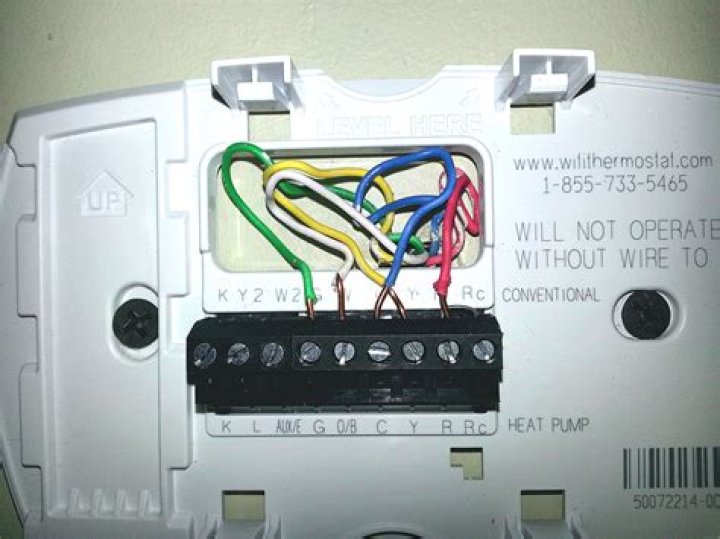

Thermostat Color Coding Connect the white wire to the “W” terminal on the furnace and thermostat. Repeat this for the red wire, connecting it to the “R” terminal on both the furnace and thermostat. The c wire, or common wire, enables the continuous flow of 24 VAC power to the thermostat.

Where does the Red Wire go on a thermostat?

Yellow – The yellow wire connects to your compressor. Green – The green wire connects to the fan. Orange – This wire connects to your heat pump (if you have one). Red – Now, there can be two separate wires for this. One is for cool and the other is for heat, hence the abbreviation “RH” and “RC”.

What’s the difference between a blue and orange thermostat?

C wires or varying colors apply to every thermostat, but blue C wires belong to thermostats attached to a heat pump. Blue wires are for heat pumps, like orange wires. This wire connects to terminal B on your thermostat.

What kind of wiring do I need for my thermostat?

Blue – This is your common or “C” wire. You may also have up to two black wires as well but these are used for various heating systems in the North or for outdoor purposes, so for most of you these won’t need any attention.

Is there a problem with a 4 wire thermostat?

4 Wire or 5 Wire Thermostat Wiring Problem – Question: We have a 19-year-old condo with an old Carrier mercury thermostat. We have both a natural gas furnace and an AC unit. There are only four wires going into the existing thermostat – red, green, blue, white.

What is the white wire on a thermostat?

If everything is hooked up according to industry standards, the wires serve the following functions: White – The white wire turns the auxiliary heater off and on. Yellow – The yellow wire connects to the compressor on a heat pump. Green – The green wire controls the fan. Orange – The orange wire controls the reversing valve that turns a heat pump into a cooling system.

How do you wire a thermostat?

Twist the wires to the connectors on the back of the thermostat or follow the directions provided with the manufacturer’s instructions. Attach the thermostat face to the new wall plate. Push all wires back into the wall, and slide the plate onto the wall plate.

What do the wires on the thermostat mean?

Thermostat wire connects the thermostat to the air handler or furnace allowing for communications between the two. Older wires will have only 2 or 4 strands but the 5 strand will provide that extra wire known as the c wire.

How many wires does a thermostat have?

Generally speaking, a thermostat that controls only heat in your home will have two wires, and one that also controls air conditioning must have at least three or four wires. If your system also includes ventilation or a heat pump, the thermostat can have as many as seven wires.
