Does the air vent go before or after the P trap

Air admittance valves are typically placed between the P-trap of a fixture and the drain line.

Should air vent be before or after P-trap?

3 Answers. All traps need venting in all cases. Without a vent, the water seal in the trap gets sucked out and sewer gases can enter the room.

Where should a trap vent be located?

It can attach directly behind the fixture or to the horizontal drain line. If two fixtures are on opposite sides of a wall, they can tie into the stack with a sanitary cross. This is called a common vent and can be found on back-to-back sinks.

Where should I place my air admittance valve?

Air Admittance Valves must be installed on a soil pipe at least 200mm above the highest water entry point on the system – that is the highest point that water can normally reach in a soil pipe. For aesthetic purposes though they are usually installed in the loft or in a duct or cupboard.

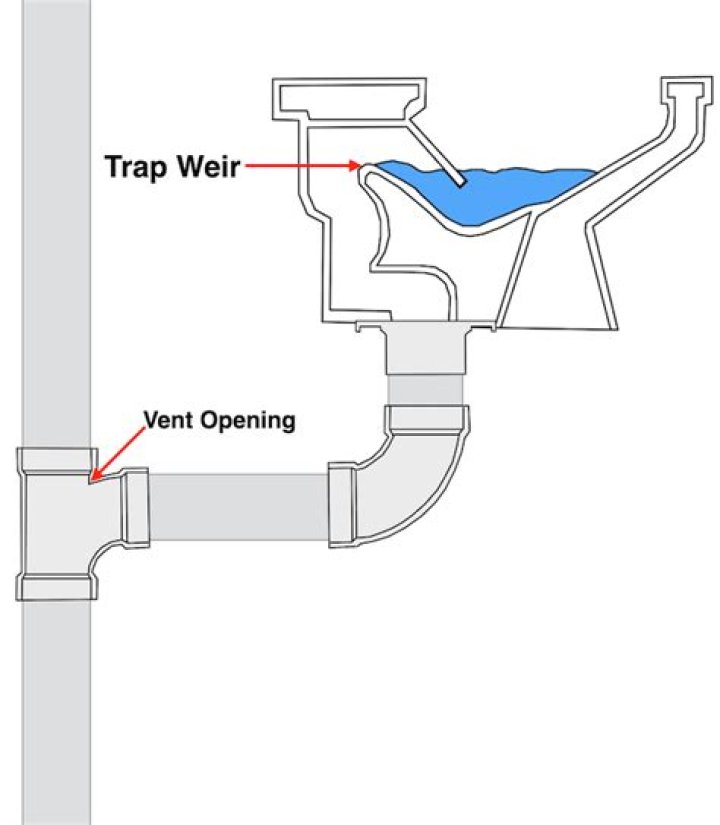

How far can the vent be from the P-trap?

As for the maximum distance between your trap and your vents, that would depend on the actual diameter of the plumbing pipe. If you have 1 ¼-inch pipe, the horizontal distance of the vent should not be more than 30 inches.

Do you need to vent every drain?

Whether you’re putting in a tub, toilet, sink, or floor drain, they all need a plumbing vent on the drain to make it work properly. If there is no vent, a number of problems may occur: … The drain will likely make gurgling noises. The water in the trap could siphon out, resulting in a potent sewer smell.

Does a shower P-trap need a vent?

P-traps need vents 1 – They give the sewer gases a place to vent, so they do not build pressure inside your sewer lines. 2 – They prevent siphoning of the water out of the trap.

Where does a studor vent go?

STUDOR vents should be installed in the vertical, and upright position. A maximum deviation of 15 degrees is allowed. The vent shall connect to the drain vertically for maintaining an unobstructed opening in the piping to the STUDOR AAVs.

How do you use an air admittance valve?

Operation is simple: when a fixture drains and creates negative air pressure in the correlated drain line, the valve is opened, drawing air back into the pipe. Once the air pressure has been equalized, the valve securely closes (preventing the escape of gas) until the pressure drops again.

How far below drain should P trap be?

However, the Universal Plumbing Code stipulates that the total developed length of all tailpieces, arms and fittings connecting the drain to the p-trap must be 24 inches or less. Jennifer Roberts has enjoyed writing since 2008.

Article first time published on

Can a toilet shower and sink share a vent?

As a general rule, you will just be able to vent 2 fixtures on a toilet wet vent. … 1) Toilet and Sink: The toilet is vented through the sink drain. The toilet drain should be 3″, the sink drain is 1.5″, the shared sink drain/toilet vent area should be 2″, and the vent going up should be 1.5″.

Does p-trap have to be directly below drain?

7 Answers. You attach the p-trap directly to the drainage and manuever the p-traps exits into you existing drain. It is not ideal to have the p-trap below the the exit drain because water gravity has to force the water out instead of it flowing downwards naturally. They both work and have seen it many times.

How many vent stacks should a house have?

At least one main vent stack is required for every building that has plumbing when connecting separately to the sewer for the building or its septic tank. The stack has to run the most direct route through open air or be ventilated to extend to open air.

What is a dirty arm in plumbing?

When a trap arm extends laterally through a stud wall inside of the wall, we call it a dirty arm. … Check the drain center below the floor to see if it matches the center of the trap arm above or to remove the trap arm to see if the drain goes down (normal scenario) , or to the side (dirty arm scenario).

How close should vent be to shower drain?

According to the UPC, the distance between your trap and the vent should be no more than 6 feet. In other words, for the vent to work properly, it needs to feed into the drain line within 6 feet of the trapways that connect to it.

How far away can a vent be from a shower drain?

The connection between the fixture drain and the horizontal drain and vent pipe is the only vertical pipe of a combination drain and vent system. 8 feet is the maximum vertical distance.

How far can P-trap be from shower drain?

The maximum distance between the shower drain and the P-trap is 5 feet. However, the P-trap should be as close to the shower drain inlet as possible. You should even have the P-trap directly under the shower drain for the best results.

How do cheater vents work?

A cheater vent (or air admittance valve) is a vent that comes off the fixture — for example, a sink in a new powder room — and is buried in the wall. … AAVs are designed to not allow sewer gas out into your wall cavity. It’s a mechanical vent that allows necessary air into the system to help drains operate efficiently.

What happens if you don't vent a drain?

Poorly-vented drain lines will not be able to effectively move wastewater and solid waste out of your building. This could lead to problems such as overflowing drains, backed-up toilets, and similar plumbing issues.

How do I check my vent stack?

Use a flashlight to shine a bright light down the vent pipe to look for further blockage you can reach. If you can see but can’t reach, run a plumber’s snake down the vent pipe. To continue, feed the end of a garden hose down the vent and have someone on the ground turn on the water.

How does a plumbing auto vent work?

First, it allows air in front of the water flowing through the waste pipe to be pushed out of the way. Second, it allows air back into the waste piping after the water has gone by. Lastly, it allows sewer gases to escape outside through a vent stack.

Can air admittance valves be used externally?

Air admittance valves can be installed externally, but this is not very common and usually only done if the soil pipe is too close to an opening window. Open pipe outlets must be installed more than 3 metres away from a window that opens, but air admittance valves can be closer than this.

Do air admittance valves meet code?

Now, AAVs are accepted by virtually all national building codes, including the SBCCI, BOCA, IRC, and IPC plumbing codes. Under the IPC, AAVs are listed for installation under Section 917; west of the Mississippi River, they’re covered under Section 301.2 of the UPC.

How do under sink vents work?

An air admittance valve (AAV), sometimes called an auto vent, is a device attached to the fixture drain line. It has a mechanism that opens up to admit room air into the drain under the force of the negative pressure caused by water flowing through the drain.

Can a studor vent be installed outside?

The Maxi-Vent is discreet – it can be installed in the attic area, or even below the flood level of the highest connected branch. It may also be installed outside the building when used in conjunction with the aluminium cover and polystyrene cap.

How high does a studor vent need to be?

STUDOR AAVs must be located a minimum of four (4”) inches above the horizontal branch drain or fixture drain being vented.

Can you put a studor vent in the wall?

You can cover it with a vent grill on the wall of your heating/cooling system, but you can’t bury it in a wall. It won’t be hard to find the smell when the AAV fails.

Is it OK to have 2 P traps?

It is perfectly fine to have (2) “P” traps , one on eash sink of a (2) sink setup. As long as the “P” traps are not Double Trapped ( more than one trap serving a fixture ) then it is fine as long as the weir is sized correctly.

How far can P-trap be from washing machine?

Code Requirements To meet standard building codes, install the trap on the drainpipe for the washing machine between 6 and 18 inches from the floor; 18 inches is the maximum height level for a P-trap on a washing machine.

Can a drain trap be too deep?

When the trap is too deep, liquid may flow through it too fast, which can lead to siphoning of the trap seal and sludge buildup. … If installing a sink with a deeper bowl results in a trap seal deeper than 4 inches, you’ll have to open up the wall and relocate the trap arm connection at the drain (see photo, above).

What is dry venting?

A dry vent system only transports air. No water is carried. In other words, wet vents may vent one fixture and drain another, whereas dry vents usually just vent air from one fixture at a time.
